Our Services
Professional shelter solutions for every project need. Engineered for durability, safety, and performance.
All Services
Monsoon Tarpaulin Shed

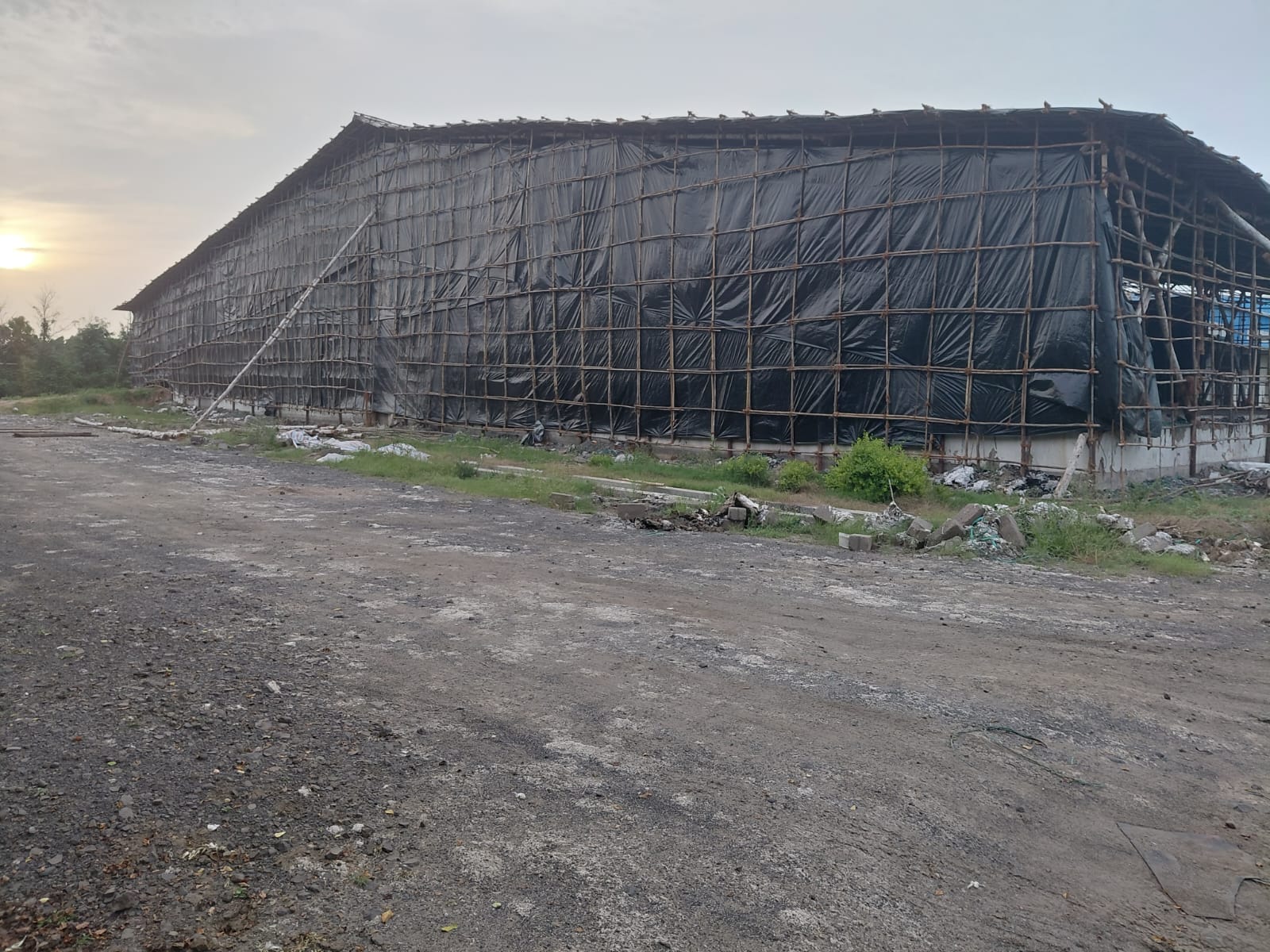

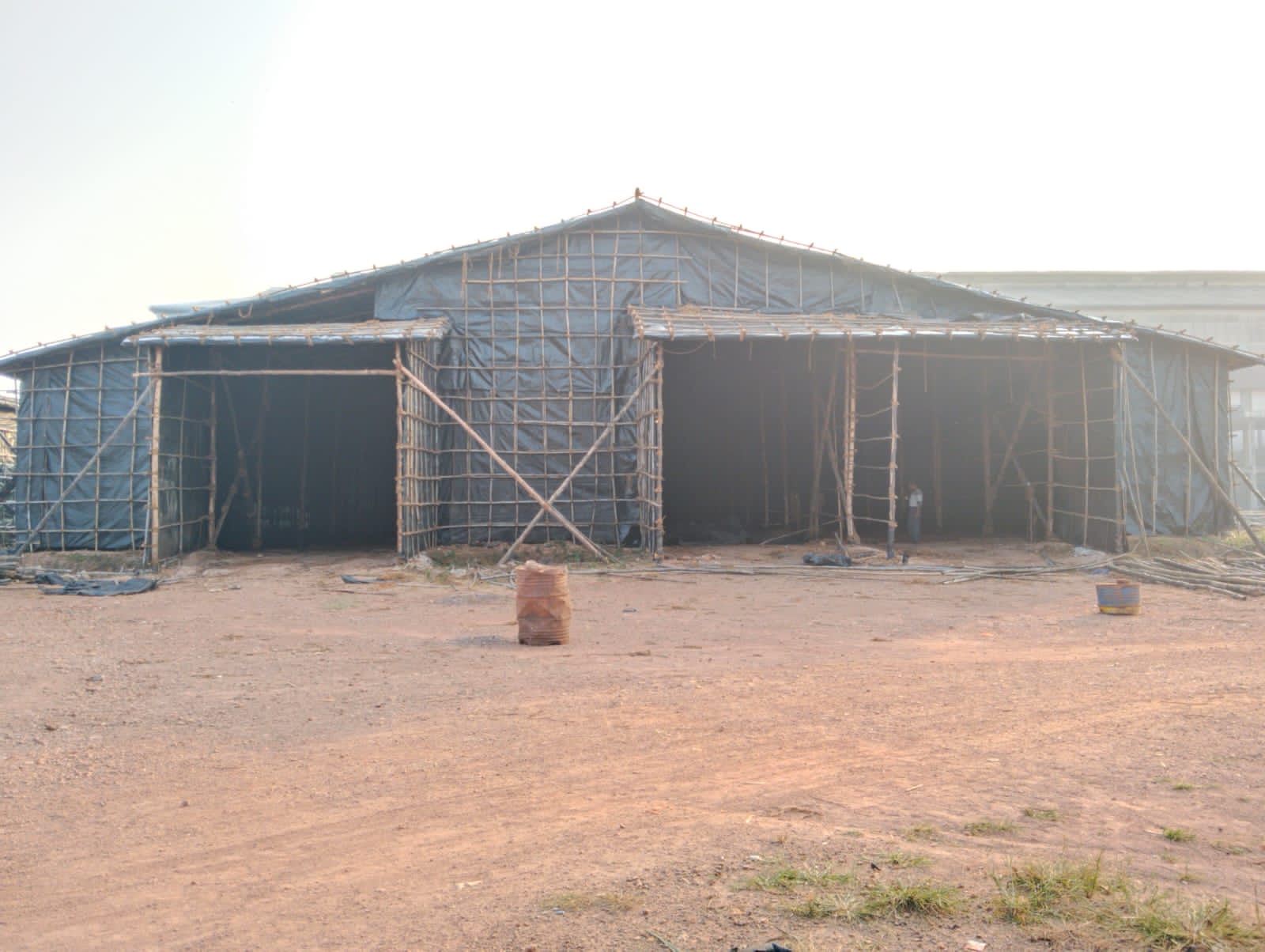

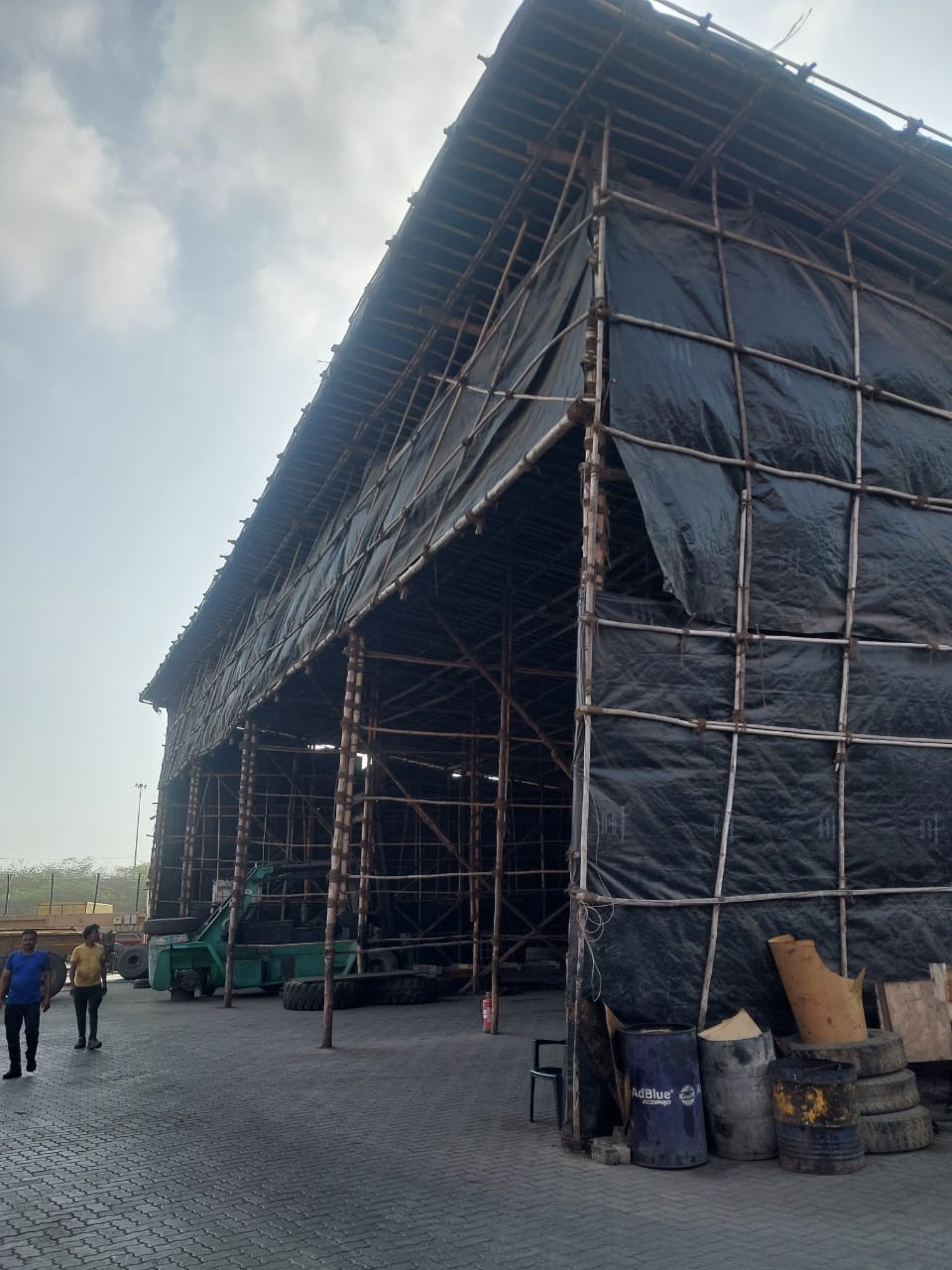

A monsoon shed is a temporary protective structure designed to safeguard spaces, materials, and people from heavy rainfall and strong winds during the rainy season. Made using high-quality waterproof tarpaulin supported by a sturdy frame, it provides reliable coverage for construction sites, warehouses, terraces, commercial areas, and outdoor spaces. Monsoon sheds are quick to install, cost-effective, and customized to fit specific site requirements, ensuring strong and secure weather protection when it matters most.
Duration
- From 05 months to 36 months
Dimensions
- Length: 10 meters up to 500 meters
- Width: 10 meters up to 40 meters
- Centre Height (Ridge Height) : 6 meters - 12 meters
- Corner Height (Eave Height): 3 meters to 7 meters
Materials & Structure
- Base Structure – Made of thick wooden ballies and bamboos tied with coir.

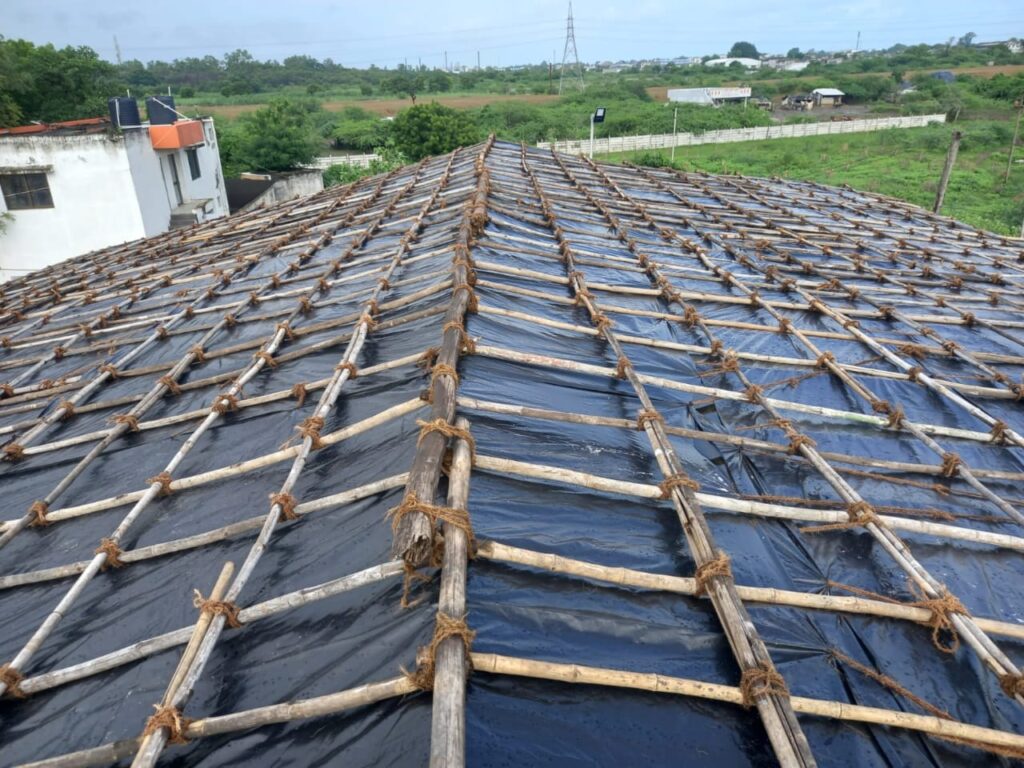

- Roof and vertical cover – Roof is covered with two layers of HDPE Tarpaulins overlapped and sandwiched with a mesh of bamboos.
Logistics & Movement
- COLUMN SPACING : A grid of wooden columns spaced at 4 to 6 meters as per requirement along the width and length.
- VEHICULAR MOVEMENT : Ideal for Forklifts and trucks.
COMMON APPLICATIONS
Temporary Storage Shed
A temporary storage shed is a versatile, short-term structure designed to safely store materials, equipment, and goods. Built with durable framing and weather-resistant tarpaulin covering, it provides protection against rain, sun, dust, and wind. Ideal for construction sites, warehouses, industrial areas, and commercial spaces, temporary storage sheds offer a cost-effective and flexible solution that can be quickly installed, relocated, or dismantled as needed.
Duration
- From 12 months to 36 months
Dimensions
- Length: 10 meters up to 500 meters
- Width: 10 meters up to 40 meters
- Centre Height (Ridge Height) : 6 meters - 12 meters
- Corner Height (Eave Height): 3 meters to 7 meters
Materials & Structure
- Base Structure – Made of thick wooden ballies and bamboos tied with coir.
- Roof and vertical cover – Roof is covered with two layers of HDPE Tarpaulins overlapped and sandwiched with a mesh of bamboos.
Logistics & Movement
- COLUMN SPACING : A grid of wooden columns spaced at 4 to 6 meters as per requirement along the width and length.
- VEHICULAR MOVEMENT : Ideal for Forklifts and trucks.
Hybrid Shed
A Hybrid shed is a temporary yet strong shelter structure built using a combination of wooden ballies and MS (mild steel) trusses. This design combines the flexibility and cost-effectiveness of wooden supports with the strength and stability of steel trusses, creating a durable solution suitable for monsoon protection and temporary coverage. Hybrid sheds are widely used at storage areas, industrial spaces, and outdoor work zones where reliable weather protection, structural strength, a wider span between columns for vehicular movement and quick installation is required.
Duration
- From 05 months to 36 months
Dimensions
- Length: 10 meters up to 500 meters
- Width: 10 meters up to 40 meters
- Centre Height (Ridge Height) : 6 meters - 12 meters
- Corner Height (Eave Height): 3 meters to 7 meters
Materials & Structure
- Base Structure – Made of thick wooden ballies and bamboos tied with coir.
- Roof and vertical cover – Roof is covered with two layers of HDPE Tarpaulins overlapped and sandwiched with a mesh of bamboos.
- Horizontal structure – Made of MS Trusses to ensure a wider span between two columns .
Logistics & Movement
- COLUMN SPACING : A grid of columns spaced at 7 to 9 meters as per requirement.
- VEHICULAR MOVEMENT : Ideal for Forklifts, trucks, hydras or dumpsters.
Terrace Shed
A tarpaulin terrace shed is a temporary protective structure installed on terraces to provide effective shelter from seepage, rain, sunlight, and harsh weather conditions. Made using high-quality waterproof tarpaulin supported by a sturdy framework, it helps prevent water seepage, protects outdoor furniture and equipment, and creates usable covered space during the monsoon season. Tarpaulin terrace sheds are quick to install, cost-effective, and customized to suit different terrace sizes and layouts.
Duration
- From 05 months to 24 months
MS Pillar Less Shed
A pillar-less monsoon shed is a wide-span shelter structure designed to provide protection from heavy rain and wind during the monsoon season, without using internal support columns. Instead of pillars, it uses strong structural systems such as steel trusses, space frames, arch frames, or cantilever beams to support the roof. This creates a completely open interior space, making it ideal for warehouses, parking areas, industrial units, agricultural storage, event spaces, or loading bays.
Duration
- From 05 months to 60 months
Dimensions
- Length: 10 meters to 300 meters
- Width: 18.5 meters to 27.5 meters Pillar Less space
- Centre Height up to 10 meters
- Corner Height up to 5 meters
Materials & Structure
- MS Structures used for the base and the horizontal bars connected with nuts and bolts
- Roof is covered with bamboos and 2 layers of tarpaulins for rain protection.
Key Features
- Large clear span (no interior columns)
- Sloped roofing for efficient rainwater drainage
- Durable materials like galvanized steel sheets or coated metal panels
- Designed to withstand heavy rainfall and wind loads
- Better space utilization and easy vehicle movement
Advantages
Maximum Usable Space
No internal columns means 100% open floor area, allowing better layout planning and full space utilization.
Easy Movement
Ideal for warehouses, factories, and parking areas where trucks, forklifts, or heavy equipment need free movement.
Flexible Layout
The interior can be rearranged easily without structural restrictions.
Better Storage Efficiency
No pillars blocking racks or stacked materials, allowing optimized storage capacity.
Cost-Effective
Modern structural systems can cover wide areas without multiple foundations for columns, reducing foundation costs.
Faster Construction
Pre-engineered steel structures can be fabricated and assembled quickly.
Improved Safety
Fewer obstructions reduce collision risks for vehicles and equipment.
Low Maintenance
Typically built with durable materials like galvanized steel, requiring minimal upkeep.
Vertical Covering
A temporary tarpaulin vertical covering is a short-term protective barrier made from strong, waterproof tarpaulin sheets installed in a vertical position to shield an area from rain, wind, dust, or sunlight. It is commonly used at construction sites, warehouses, sheds, event spaces, or open storage areas during monsoon or harsh weather conditions. These are wall-like structures used to protect and enclose spaces from wind gusts or dust.
Duration
- From 05 months to 24 months
Dimensions
- Length: 10 meters to 300 meters
- Height: 5 meters to 8 meters
Materials & Structure
- The standing vertical structure is made of bamboos, ballies and tied with coir
- Heavy Duty virgin HDPE Tarpaulins are used for the cover.
Building Covering
These are used by builders and developers to cover their under-construction buildings from dust and water during monsoon or used to comply with local municipal requirements.
Duration
- From 05 months to 36 months
Dimensions
- As per building height and width/length
Materials & Structure
- Bamboos and Ballies tied with coir
- Tarpaulins or green net as per client requirement
